TBB Serisi Ana Dağıtım Terminalleri
2x25 mm², 2x25 mm² Ana Dağıtım Terminalleri
| Cover Color | Code | Pole | Cross Section (max) | Torque | Nominal Current (A) |
|---|---|---|---|---|---|
| Grey | TBB 12525A1 | 1 | 2×25 mm², 2x25 mm² | 2,5 Nm | 130(Cu), 100(Al) |
| Blue | TBB 12525A2 | 1 | 2×25 mm², 2x25 mm² | 2,5 Nm | 130(Cu), 100(Al) |
| Green | TBB 12525A3 | 1 | 2×25 mm², 2x25 mm² | 2,5 Nm | 130(Cu), 100(Al) |

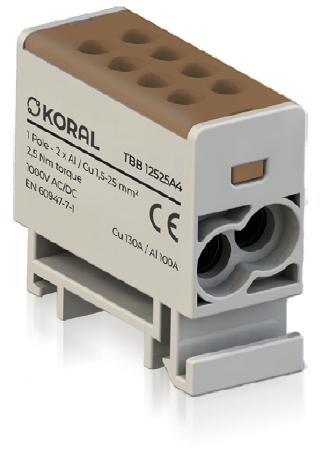

| Brown | TBB 12525A4 | 1 | 2×25 mm², 2x25 mm² | 2,5 Nm | 130(Cu), 100(Al) |
| Black | TBB 12525A5 | 1 | 2×25 mm², 2x25 mm² | 2,5 Nm | 130(Cu), 100(Al) |
| Red | TBB 12525A6 | 1 | 2×25 mm², 2x25 mm² | 2,5 Nm | 130(Cu), 100(Al) |
