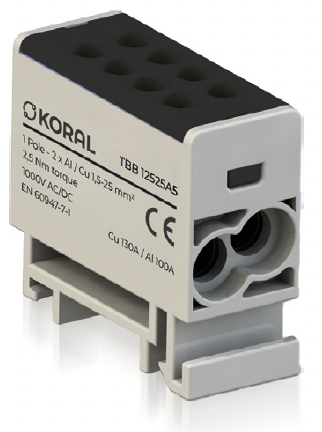

TBB Serisi Ana Dağıtım Terminalleri
2x35 mm², 2x25 mm²Ana Dağıtım Terminalleri
| Cover Color | Code | Pole | Cross Section (max) | Torque | Nominal Current (A) |
|---|---|---|---|---|---|
| Grey | TBB 12535A1 | 1 | 2×35 mm², 2x25 mm² | 2,5-3 Nm | 130(Cu), 100(Al) |
| Blue | TBB 12535A2 | 1 | 2×35 mm², 2x25 mm² | 2,5-3 Nm | 130(Cu), 100(Al) |
| Green | TBB 12535A3 | 1 | 2×35 mm², 2x25 mm² | 2,5-3 Nm | 130(Cu), 100(Al) |
| Brown | TBB 12535A4 | 1 | 2×35 mm², 2x25 mm² | 2,5-3 Nm | 130(Cu), 100(Al) |
| Black | TBB 12535A5 | 1 | 2×35 mm², 2x25 mm² | 2,5-3 Nm | 130(Cu), 100(Al) |
| Red | TBB 12535A6 | 1 | 2×35 mm², 2x25 mm² | 2,5-3 Nm | 130(Cu), 100(Al) |
